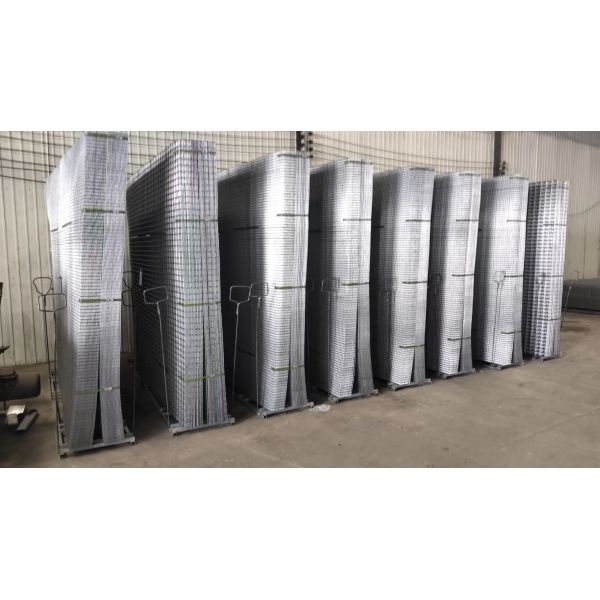

Customized Size Galvanized Welded Wire Mesh Panels Corrosion Resistive
Product Overview
2x2 Galvanized Welded Wire Mesh Panels 6mm Welded Wire Mesh Sheets in various sizes. Made with plain steel wire welded together in square openings, then processed through hot-dipped zinc coating for superior corrosion resistance.
Applications
Ideal for constructing animal cages, enclosure works, fabricating wire containers and baskets, grills, partitions, machine protection fences, gratings, and various construction applications.
Manufacturing Process
Hot-dipped zinc coated welded wire mesh panels are manufactured according to English standards. The finished welded mesh offers flat and uniform surface, firm structure, and excellent integrity. This provides the most exceptional anti-corrosion resistance among steel wire mesh products.
Available in various coating options:
- Hot Dipped Galvanized After/Before Welding
- Electro Galvanized After/Before Welding
- PVC Coating (Green, Black, Color, etc.)
- Stainless Steel Wire Construction
Standard Specifications
Standard length: 30m/roll, Width: 0.3m - 2.5m
| Opening (inch) |
Wire Diameter (BWG) |
| 1/4" x 1/4" | 22, 23, 24 |
| 3/8" x 3/8" | 19, 20, 21, 22 |
| 1/2" x 1/2" | 16, 17, 18, 19, 20, 21, 22, 23 |
| 5/8" x 5/8" | 18, 19, 20, 21 |
| 3/4" x 3/4" | 16, 17, 18, 19, 20, 21 |
| 1" x 1" | 16, 17, 18, 19 |
| 1" x 1/2" | 16, 17, 18, 19, 20, 21 |
| 1" x 1/4" | 14, 15, 16, 18 |
| 1" x 2" | 14, 15, 16 |
| 2" x 2" | 7, 8, 9, 10, 11, 12 |
| 4" x 4" | 7, 8, 9, 10, 11, 12 |
| 6" x 6" | 7, 8, 9, 10, 11, 12 |
Product Characteristics
- Excellent heat resistance and high intensity
- High strength and strong integration
- Flat and smooth surface combined with firm structure
- Perfect anti-rust property
- Maintains integrity even when cut into fragmented parts
- Long service life
- Hot-dipped galvanized after welding eliminates black welded points, provides better zinc coating for superior rust resistance and longevity
Industry Applications
Highly popular in breeding industry for floor heating, construction use, various animal cages or fences. The zinc coating provides both excellent anti-corrosion properties and decorative appearance with its flat surface.
With first-class anti-corrosion properties, widely used in mine sieving industries as sieving screens. The low carbon steel wire offers flexibility for numerous fabrication applications.
Welded Construction Mesh Advantages
- Wide range of diameters (from 3mm to 5mm)
- Economical reinforcement due to high strength of cold drawn wire
- Saves time and money
- Strong welded joints
- Uniform spacing between wires
- Equivalence with traditional reinforcement
Detailed Specifications
| Opening |
Metric Unit (mm) |
Wire Diameter |
| 1"x1" | 25mmx25mm | 2.5mm, 2.0mm, 1.8mm, 1.6mm |
| 2"x2" | 50mmx50mm | 2.5mm, 2.0mm, 1.8mm, 1.6mm |
| 2"x3" | 50mmx70mm | 6.0mm, 5.0mm, 4.0mm, 3.0mm, 2.5mm, 2.0mm, 1.8mm |
| 2"x4" | 50mmx100mm | 6.0mm, 5.0mm, 4.0mm, 3.0mm, 2.0mm |
| 2"x6" | 50mmx150mm | 6.0mm, 5.0mm, 4.0mm, 3.0mm |
| 2"x8" | 50mmx200mm | 6.0mm, 5.0mm, 4.0mm, 3.0mm |
| 3"x3" | 75mmx75mm | 6.0mm, 5.0mm, 4.0mm, 3.0mm, 2.5mm, 2.0mm, 1.8mm, 1.6mm |
| 3"x4" | 75mmx100mm | 6.0mm, 5.0mm, 4.0mm, 3.0mm, 2.5mm, 2.0mm, 1.8mm |
| 4"x4" | 100mmx100mm | 6.0mm, 5.0mm, 4.0mm, 3.0mm |
| 5"x5" | 125mmx125mm | 6.0mm, 5.0mm, 4.0mm, 3.0mm |
| 6"x6" | 150mmx150mm | 6.0mm, 5.0mm, 4.0mm, 3.0mm |
Technical Notes:
- Standard Panel Length: 0.5m - 5.8m
- Standard Panel Width: 0.5m - 2.4m
- Special sizes available upon request
Packaging & Delivery
Packaging options include:
- In bulk
- Plastic film or woven on both sides
- On pallet
- Customized packaging available
Company Profile
Anping Bingze Wire Mesh Products Co., Ltd. has specialized in stainless steel wire mesh production and R&D for 25 years. As a manufacturer integrating production, processing, distribution, and wholesale, our main products include:
- Galvanized welded wire mesh
- Stainless steel welded wire mesh
- PVC welded wire mesh
- Crimped wire mesh
- Galvanized woven wire mesh
- Stainless steel woven wire mesh
- Chain link fence
- Steel fence
- Welded wire mesh fence panels
- PVC euro fence
- 358 anti-climb fence
- Razor wire
Our commitment focuses on four key principles: High Quality, Quick Delivery, Competitive Pricing, and Thorough Service. Through product quality and credit standing, we have earned favorable customer feedback.
We utilize precise manufacturing machines and techniques, combining scientific management methods with quality control systems. Our products meet high standards and are distributed nationwide and internationally to Southeast Asia, Middle East, America, Japan, and African countries.
Frequently Asked Questions
Can I customize the products?
Yes, provide us with specifications and drawings, and we can provide samples before mass production.
How about the delivery time?
Depending on order quantity, usually within 7-15 days. Customized orders may require additional time.
How can we guarantee quality?
We always provide pre-production samples before mass production and conduct final inspection before shipment.
Can you help us find other products together?
Yes, we have a specialized procurement department to help customers centrally purchase goods.
